Barbed riveting machine

Product categories:Supercapacitor devices

※ The device has been in improving and in the images displayed on this website and the data are for reference only, order should be to the technical parameters of both parties prevail. Any improvement, without notice

Tel:+86-513-82187006 82187003

Address:Nanhai east road and Zhanjiang Road, economy development zone, Haimen, Jiangsu, China

Email:th@ntthkj.com

Prev:THM-808 horn cap film riveting machine

Next: Punching Machine

Details

【Character】

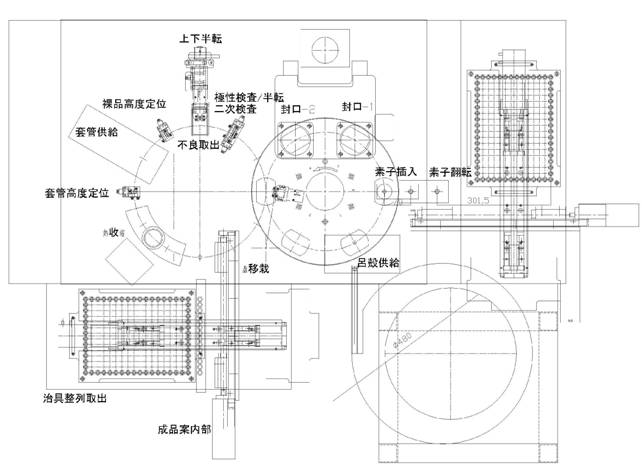

1, The machine is designed for slim type (pen) aluminum electrolytic capacitor assembly design and development of automated production equipment, through the feed pan plate approach to production scheduling. Group has been established, set hose, plus shrinking while the capacitor products.
2, the components of the equipment used electrolyte corrosion resistance, wear-resistant special stainless steel and high alloy materials processing. The shaft, bearing the original components are used, and the other is with the universal drive rod bearings, the entire mechanical drive reduces vibration, noise and make it play high performance, accuracy.
3 Department of the mechanical structure of the principle of precision machinery, with high reliability between PLC and control circuit components, in the operation process, the lack of materials and abnormal state, able to automatically and other material or stop, and it will alarm and the display will show lack of material tips.
4, the machine used: servo motor, precision segmentation, advanced linear slide to ensure accurate positioning of the equipment, stable, smooth flowing movement.
5, this machine is a special model, limited to the production of capacitors of this size.


Applicable Standard Adjustment standard

Product diameter

Product Trail

φ 10 * 50

Machine Speed

Mechanical speed

20-25pcs/min

Power Efficiency Efficiency demand

Voltage

Voltage

AC220V

Frerquency

Frequency

50/60HZ

Capacity

Power Capacity

3kw

Air

Air pressure required

4kgf/cm 2 ( 5-10 kgf / cm 2 )

Approximate size and weight

Size

Approximate size

1500 ( W ) × 1500 ( D ) × 2000 ( H )

Weight

Weight

900kg
